LIFTBOY 1/2/3

The decent platform lift up to 97cm

Overview

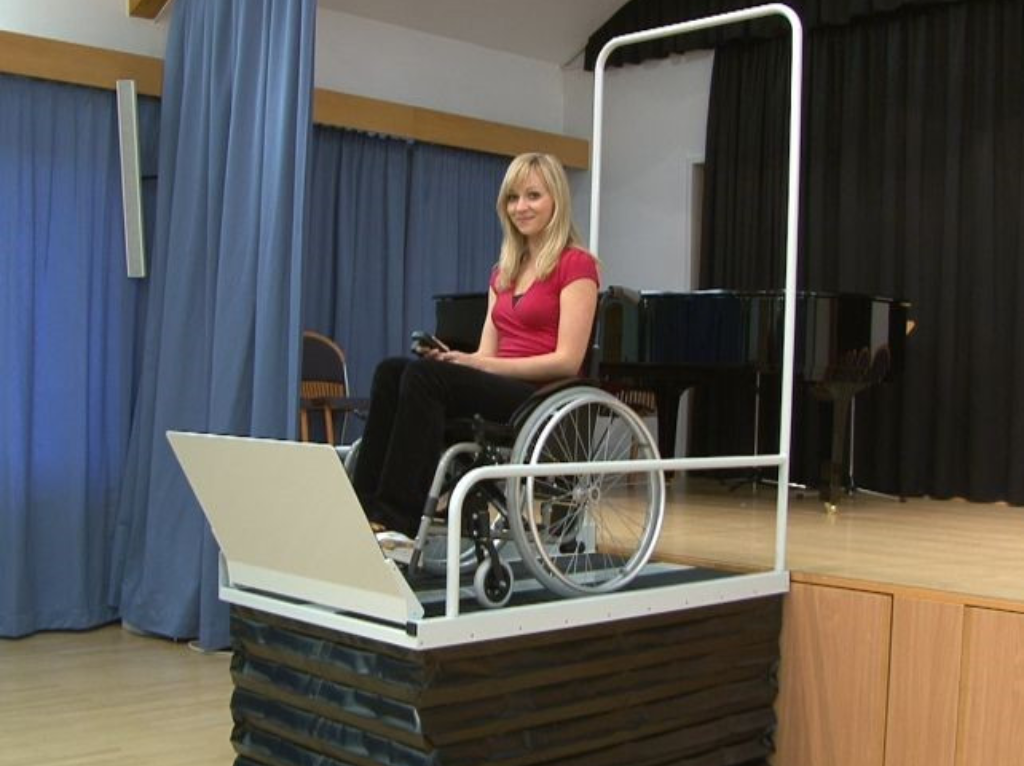

The Liftboy is the ideal wheelchair lift solution for height differences up to 97 cm.

Resistant – Can be used both indoors and outdoors

Mobile – Mobile due to lightweight design and transport wheels

Customizable – Available in all desired RAL shades and with many options

3 different types

• Liftboy 1 – lifting height 595mm / 180kg payload

• Liftboy 2 – lifting height 830mm / 300kg payload

• Liftboy 3 –  lifting height 970mm / 240kg payload

Main advantages

• Can be used indoors and outdoors

• Light weight allows easy transport between different locations

• No fastening to the floor necessary

• Many different design variants




Specification

Lifting height / Load capacity

Liftboy 1: 595 mm / 180 kg
Liftboy 2: 830 mm / 300 kg
Liftboy 3: 970 mm / 240 kg

Lifting speed

10 mm/s

Surface treatment Powder coated in RAL 7035
Optional any RAL colour
Optional in stainless steel
Net weight Liftboy 1: 53 kg
Liftboy 2 and 3: 95 kg
Power supply 1 x 230 V / 50-60 Hz
Total width Liftboy 1: 810 mm
Liftboy 2 and 3: 924 mm
Total length
Liftboy 1: 1180mm
Liftboy 2 and 3: 1505mm
Options

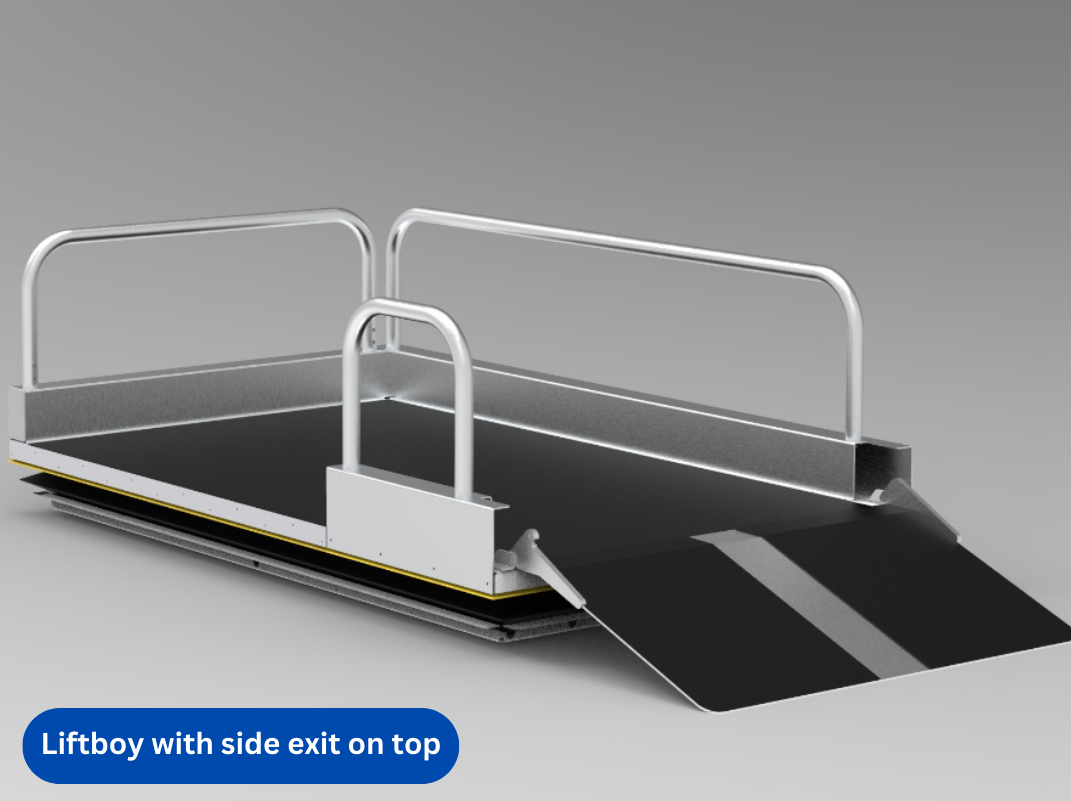

  • Side entry at lower level
  • Side exit at upper level
  • Control pillar
  • Radio remote controls
  • Transport wheels
  • Door at upper landing
  • Automatic door opener
  • Contact bars for pit mounting
  • Pillars for remote controls
  • Manual ramp
  • Extended ramp
